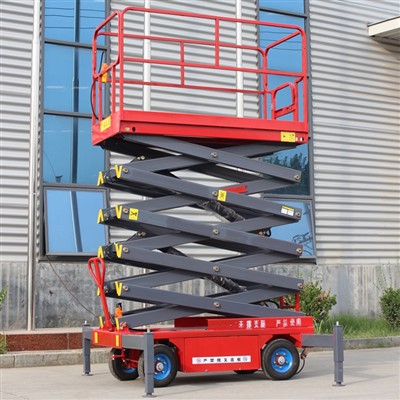

Llwyfan Lifft Siswrn Awyr Robotig 19'
I. Proffil Cynnyrch
Mae'r llwyfan gwaith awyr symudol math siswrn yn mabwysiadu strwythur mecanyddol math siswrn dur holl-manganîs, sy'n gwneud y llwyfan codi yn hynod ddiogel a sefydlog ar ôl ei godi. Mae'r llwyfan gweithio eang a'r gallu i gynnal llwyth uchel hefyd yn gwneud gweithrediadau uchder uchel yn fwy ac yn fwy effeithlon. Yn addas ar gyfer nifer o bobl sy'n gweithio ar yr un pryd.
II. Taflen Dechnegol
|
Model |
Maint tabl |
Capasiti llwyfan |
uchder platfform |
Dimensiwn(L*W*H) |
Pwysau |
Ffynhonnell pŵer |
|
SJY0.5-4 |
2.1*0.83m |
500kg |
4m |
2.25*0.95*1.1m |
800kg |
1.1kw/220v |
|
SJY0.5-6 |
2.1*0.83m |
500kg |
6m |
2.25*0.95*1.2m |
880kg |
1.1kw/220v |
|
SJY0.5-7 |
2.1*0.83m |
500kg |
6.8m |
2.25*0.95*1.28m |
970kg |
1.1kw/220v |
|
SJY0.5-8 |
2.1*0.93m |
500kg |
8m |
2.25*1.06*1.38m |
1050kg |
1.5kw/220v |
|
SJY0.5-9 |
2.1*0.93m |
500kg |
9m |
2.25*1.06*1.5m |
1165kg |
1.5kw/220v |
|
SJY0.5-10 |
2.1*1.23m |
500kg |
10m |
2.25*1.35*1.53m |
1360kg |
2.2kw/380v |
|
SJY0.5-11 |
2.1*1.23m |
500kg |
11m |
2.25*1.35*1.65m |
1400kg |
2.2kw/380v |
|
SJY0.5-12 |
2.5*1.53m |
500kg |
12m |
2.79*1.67*1.75m |
2260kg |
3kw/380v |
|
SJY0.5-14 |
2.8*1.53m |
500kg |
14m |
3.06*1.73*1.81m |
2486kg |
3kw/380v |
|
SJY0.3-16 |
2.8*1.6m |
300kg |
16m |
3.06*1.81m*2.08m |
3063kg |
3kw/380v |
|
SJY0.3-18 |
3.07*1.6m |
300kg |
18m |
3.321*1.81*2.08m |
3900kg |
3kw/380v |
|
SJY1.0-4 |
2.1*1.2m |
1000kg |
4m |
2.25*1.35*1.18m |
1250kg |
2.2kw/380v |
|
SJY1.0-6 |
2.1*1.2m |
1000kg |
6m |
2.25*1.35*1.3m |
1400kg |
2.2kw/380v |
|
SJY1.0-8 |
2.1*1.2m |
1000KG |
8m |
2.25*1.35*1.42m |
1585kg |
2.2kw/380v |
|
SJY1.0-10 |
2.1*1.2m |
1000kg |
10m |
2.25*1.35*1.53m |
1700kg |
3kw/380V |
|
SJY1.0-12 |
2.5*1.5m |
1000kg |
12m |
2.25*1.35*1.53m |
2900kg |
3kw/380v |
|
SJY1.0-14 |
2.8*1.6m |
1000kg |
14m |
3.06*1.81*1.9m |
3230kg |
3kw/380v |
|
SJY1.5-6 |
2.1*1.5m |
1500kg |
6m |
2.25*1.75*1.53m |
1780kg |
3kw/380v |
|
SJY1.5-8 |
2.1*1.5m |
1500kg |
8m |
2.25*1.75*1.69m |
2070kg |
3kw/380v |
|
SJY1.5-10 |
2.1*1.5m |
1500kg |
10m |
2.25*1.75*1.85m |
2550kg |
3kw/380v |
|
SJY1.5-12 |
2.5*1.5m |
1500kg |
12m |
2.79*1.76*1.85m |
2900kg |
3kw/380v |
|
SJY1.5-14 |
2.8*1.6m |
1500kg |
14m |
3.04*1.85*1.96m |
3400kg |
4kw/380v |
|
SJY2.0-6 |
2.1*1.5m |
2000kg |
6m |
2.25*1.75*1.5m |
1780kg |
3kw/380v |
|
SJY2.0-8 |
2.1*1.5m |
2000kg |
8m |
2.2*1.7*1.69m |
2070kg |
3kw/380V |
|
SJY2.0-10 |
2.1*1.5m |
2000kg |
10m |
2.25*1.7*1.85m |
2250kg |
3kw/380v |
|
SJY2.0-12 |
2.5*1.6m |
2000kg |
12m |
2.79*1.85*1.95m |
3200kg |
4kw/380v |
|
SJY2.0-14 |
2.8*1.6m |
2000kg |
14m |
3.06*1.85*2.2m |
3900kg |
4kw/380v |

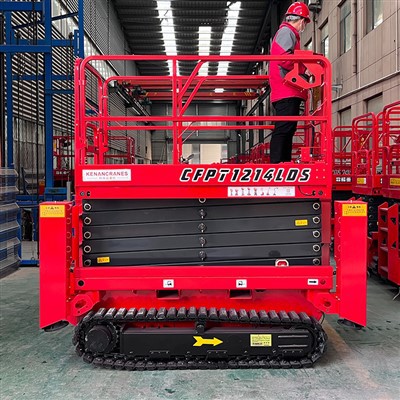

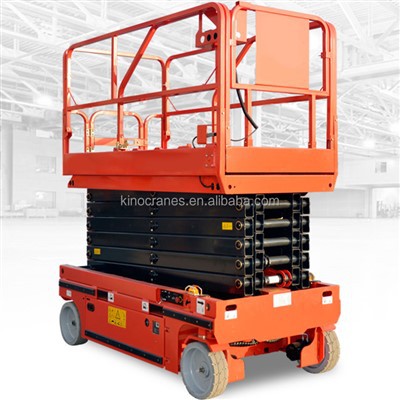

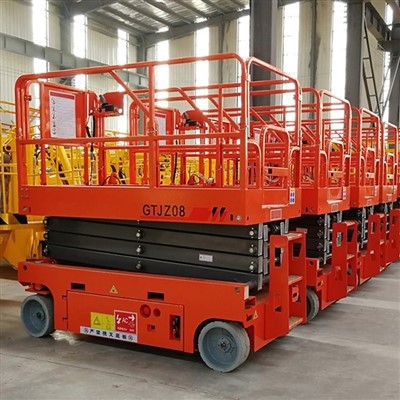

III. Delweddau Manwl

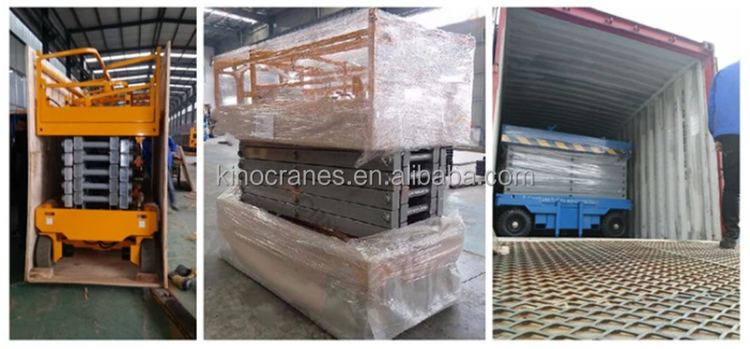

IV. Pacio
